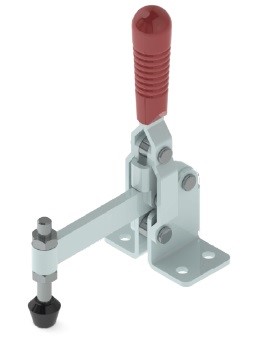

Steelsmith clamp – VTC-10088-SF

This Steelsmith clamp VTC-10088-SF is a Vertical hold down action toggle clamp.

Material grade of Steelsmith clamp VTC-10088-SF

Steel / zinc-plated

Base type of Steelsmith clamp VTC-10088-SF

Flanged base

Spindle position of Steelsmith clamp VTC-10088-SF

Fixed spindle position

Holding capacity of Steelsmith clamp VTC-10088-SF

800 Kg

Holding capacity of Steelsmith clamp VTC-10088-SF

8000 N

Handle movement Steelsmith clamp VTC-10088-SF

80 degrees

Bar movement Steelsmith clamp VTC-10088-SF

83 degrees

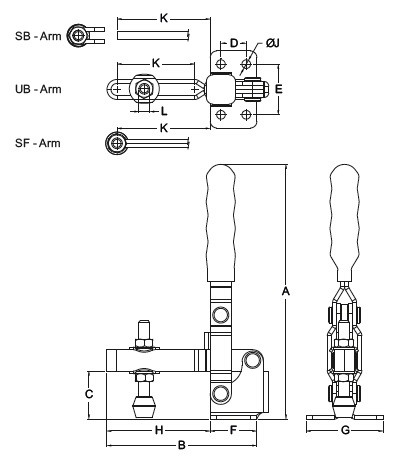

Dimensions of Steelsmith clamp VTC-10088-SF (mm)

A

290

B

182

C

105

D

45

E

60

F

76

G

90

H

106

J

8.5

K

105

L

M12 Bolt

Steelsmith Vertical hand clamps feature handles that are in a vertical position when the quick release clamp is locked.

These super clamps can be produced and delivered in all popular sizes and styles.

The holding capacity of these clamp tools starts from 50 kgs to 500 kgs and more

The quick release clamps are also available in stainless steel or can be equiped with an additional locking mechanism.
